Aztech Xtreme Adjustable T-Piece
Aztech Innovations Precision Adjustable T-Piece
Patent Pending
Product Overview

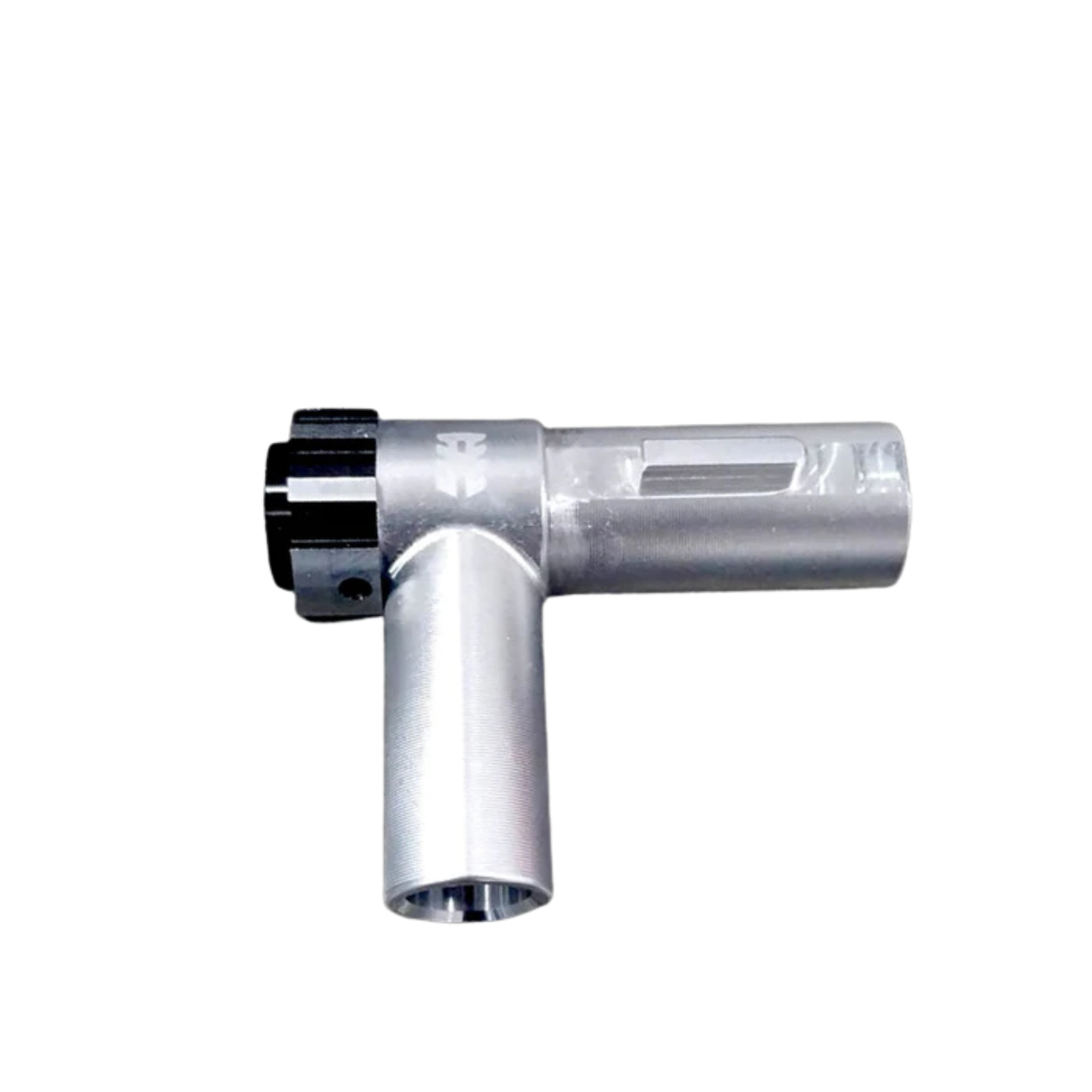

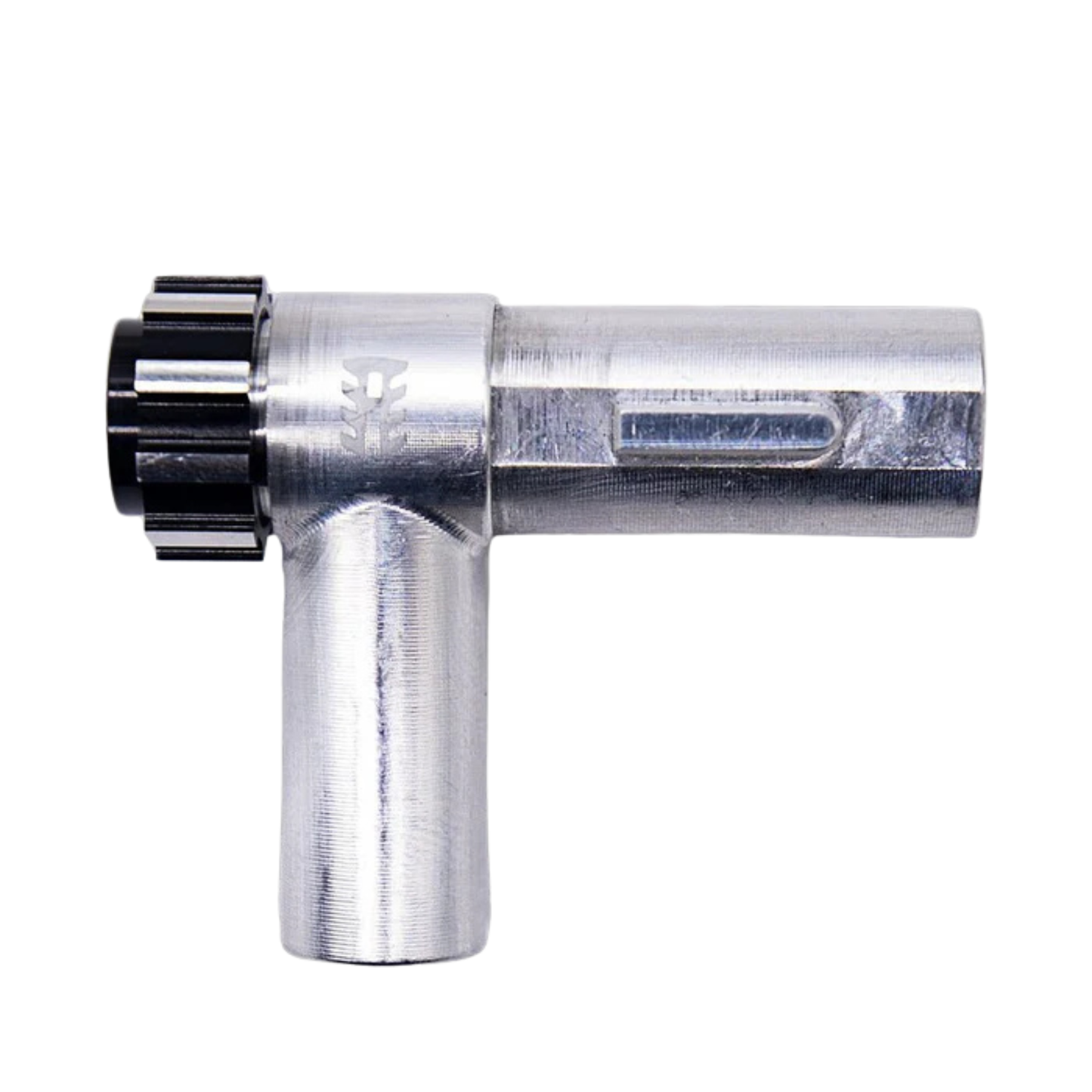

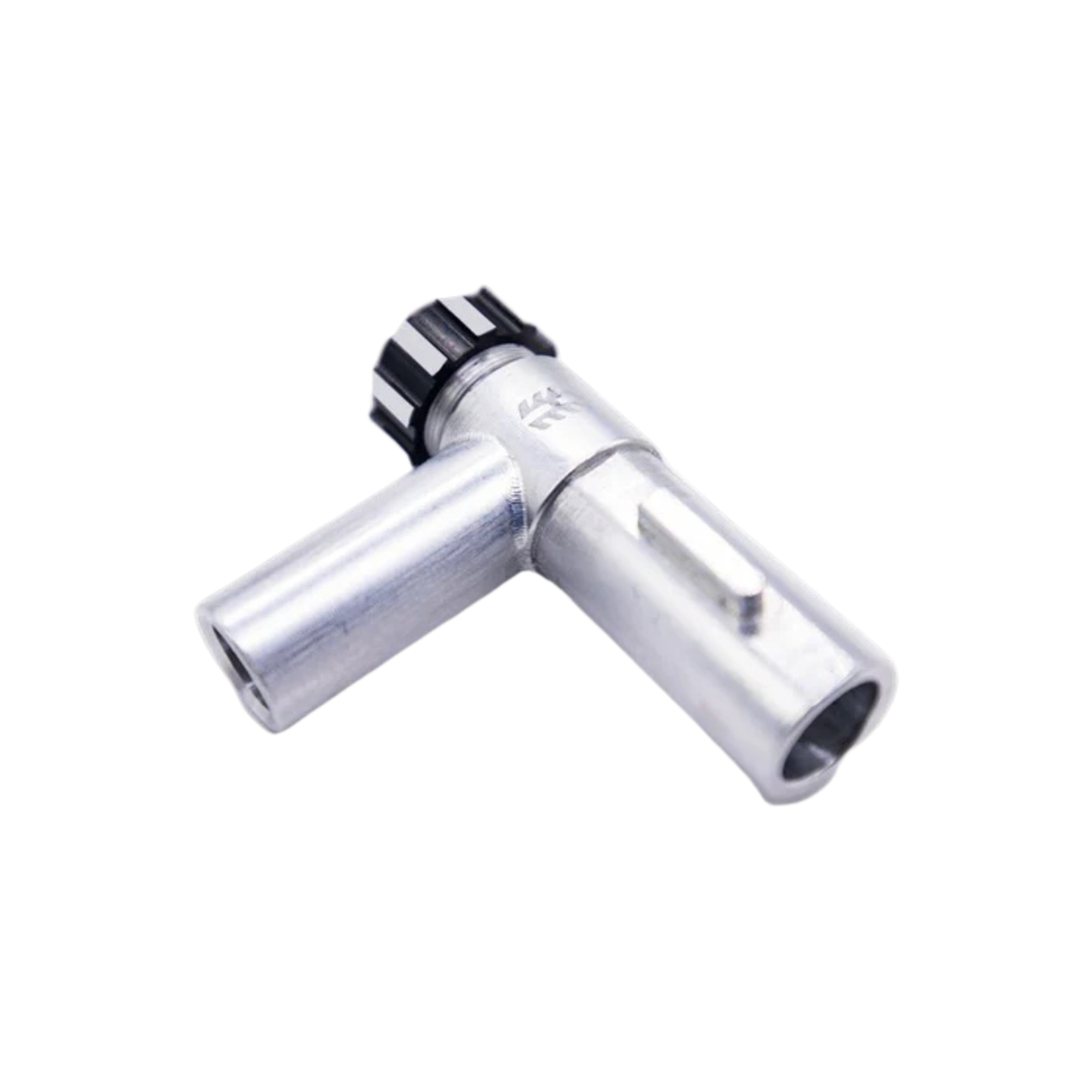

The Aztech Innovations Adjustable T-Piece is a high-precision component engineered for enthusiasts and technicians seeking absolute control over their build's feeding and air seal. Designed for micrometre-level tuning, this T-piece allows for ultra-fine adjustments to the feed tube position, ensuring optimal alignment and compression across a wide variety of gearbox and receiver combinations.
Key Features & Precision Engineering
-

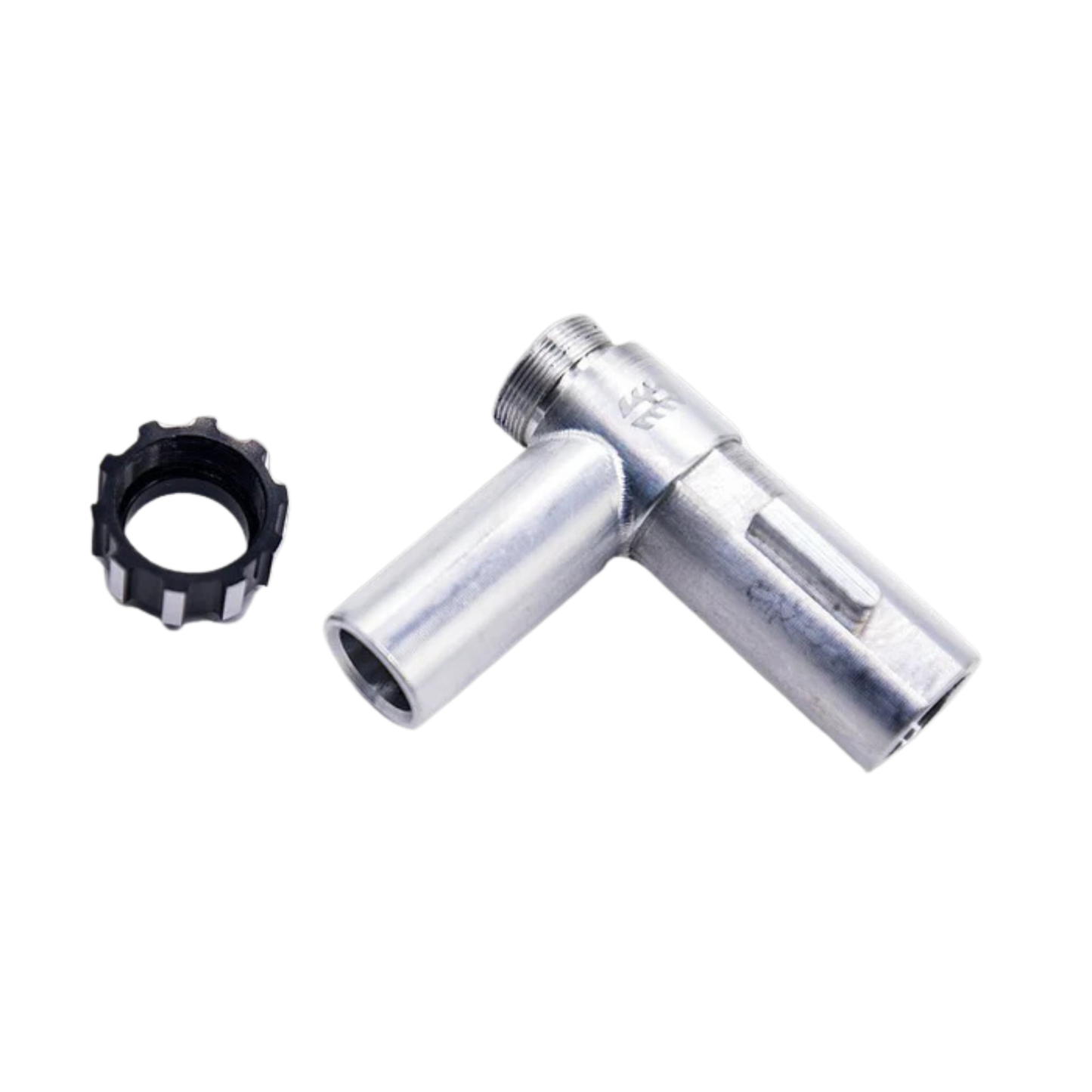

Micrometer Adjustment: Features an integrated black adjuster ring that allows for longitudinal length tuning in increments of thousandths of a millimeter.
-
Billet Construction: CNC machined from high-grade 6061 billet aluminum for superior durability and thermal stability.
-
Secure Locking Mechanism: Equipped with a dedicated grub screw and lockable collar to maintain the chosen setting under high-vibration conditions.
-
Optimized for Performance Systems: Specifically designed for tuning the Aztech APACHE tappetless system, HPA nozzles, and specialized gearbox conversions.
Technical Specifications
-
Material: 6061 Billet CNC Aluminum
-
Adjustment Range: Fine-thread adjustment for high-resolution positioning.
-
Internal Compatibility: Designed to seat Aztech rubber tips as well as industry-standard tips from Kublai and War Interest.
-
External Compatibility:
-
Direct Fit: APS receivers utilising APS or Scythe gearboxes.
-
Universal/Modular: Compatible with most receiver types, though side locator wings may require minor modification (e.g., Dremel work) for ARP and Wells-style receivers/outer barrel adapters.
-
Installation & Calibration Notes
-
Alignment: Extending the T-piece moves the feed tube further from the gearbox face to achieve a perfect seal or to clear internal obstructions.
-
Securing the Setting: Once the optimal position is verified through testing, tighten the locking grub screw.
-
Retention: To prevent self-adjustment during operation, we recommend applying a low-strength (purple) thread locker or approximately four layers of PTFE thread tape to the adjustable face.
-
Universal Fitment Disclaimer: As a universal performance part, while successful in most applications, fitment cannot be guaranteed for all non-standard receiver and barrel combinations without minor technical adjustment.
