CHI HAI Motor Blue 460 28.5k RPM
CHI HAI Motor Blue 460 28.5k RPM

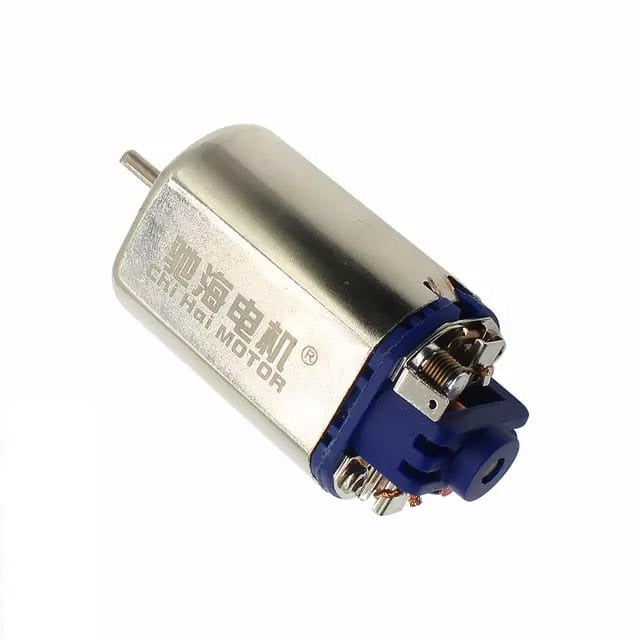

ChiHai Motor 460 High-speed Motor with Large Torque made from pure copper wiring, down to the rotor using pure copper. This allows for small resistance and strong conductivity. The D-shaped shaft makes it convinient to install and not easy to slip.
Two fan-shaped magnets are arranged in the motor to form a large magnetic field, and the torque is increased from the side.
Specs:
At a constant voltage of: 11.10 Volts
- No Load
- Speed: 28500 RPM
- Current: 2.5 AMPS
Maximum Power output
- Output: 335 Watts
- Torque: 223 mN-m
- Current: 61.35 AMPS
