This set is specially designed for new beginners and intermediate modelers. It not only carries forward the outstanding quality of ABSIMA (powered by HOBBYWING) products but simplifies the operation.
FEATURES:
- Water-proof and dust-proof for all weather races
- Small size with built-in capacitor module
- Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection
- Easily programmed with “jumpers”
SPECIFICATION:
- Application: On-road/Off-road
- Cont. / Burst Current - forward: 40A / 180A
- Cont. / Burst Current - reverse: 20A / 90A
- Input: 2-3S LiPo / 5-9 Cells NiMH
- Battery "Low-Power" Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V
- Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V
- Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V
- Maximum Reverse Force: 50%
- Overheat Protection: 100°
- Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm
- Built-in BEC: 2A/6V (Linear Mode BEC)
- Plug System: Tamiya
- Plug & Drive System: yes
- On/Off Switch: yes
- Dimmension (L/W/H): 46.5*34.0*28*5 mm
- Weight: 70g
SPECIFICATION MOTOR:
- Turns: 17x2T
- RPM: 26.300
- Continuous Current: 155W
- Operation V: 7.2V-7.4V
- Motor size: 540
- Shaft length: 12,3mm
- Shaft Ø: 3,19mm
- Motor length: 53,2mm
- Motor Ø: 35,7mm
- Brushess & Springs changeable: yes

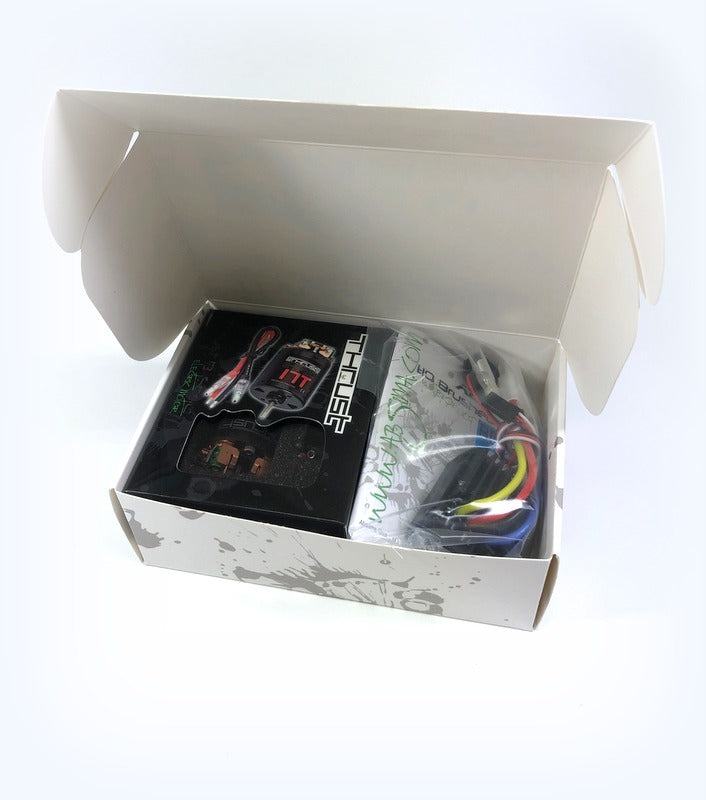

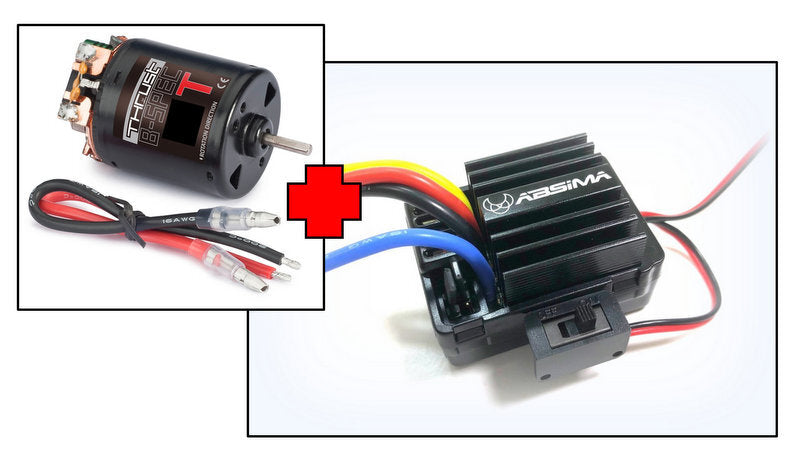

SCOPE OF DELIVERY:
- WP1040 Brushed ESC
- 17T Electric Motor
- Manual
