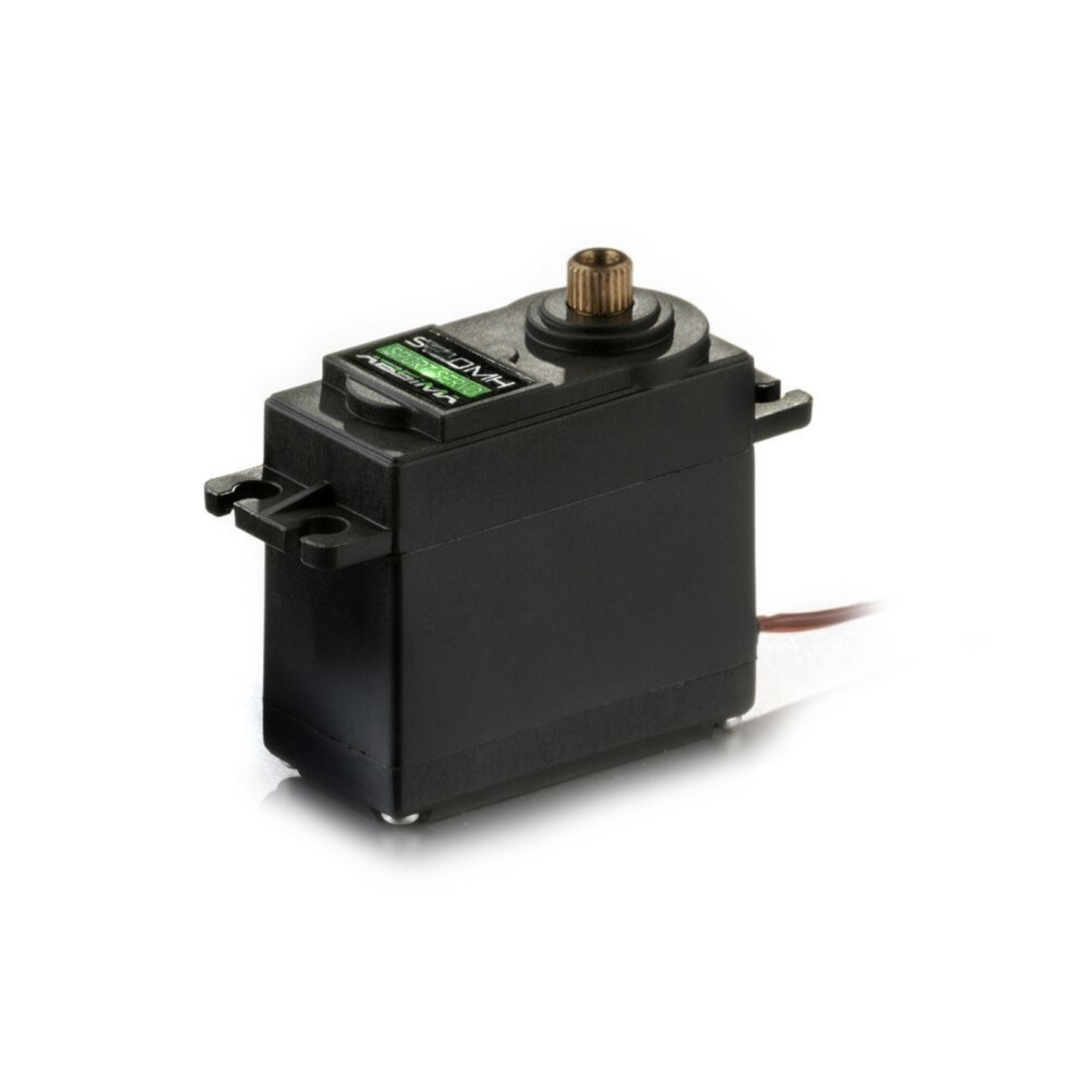

Abisma Servo "S250MH" 25kg 25T/JR Metal Gear
The S250MH servo delivers impressive performance for RC applications with 25kg of torque at 7.4V and rapid 0.16-second response time per 60°. Built with durable metal gears and dual ball bearings for reliability, this standard-size servo operates across 6.0-8.4V for flexible power options. Features a 25T spline shaft, JR connector, and compact 56g weight, making it ideal for precision control in RC models. Includes 260mm 22AWG cable for easy installation with standard 48.6mm hole spacing.
Size: Standard
- Operating Voltage: 6.0-8.4V
- Torque: 25,0 Kg @ 7,4V
- Speed: 0,16 Sec / 60° @ 7.4V
- Gear Material - Metal
- Motor type: Core
- Shaft Spec. 25T
- Plug system - JR
- Kabel: 22AWG, 260mm
- Ball bearing: 2
- Weight: 56g

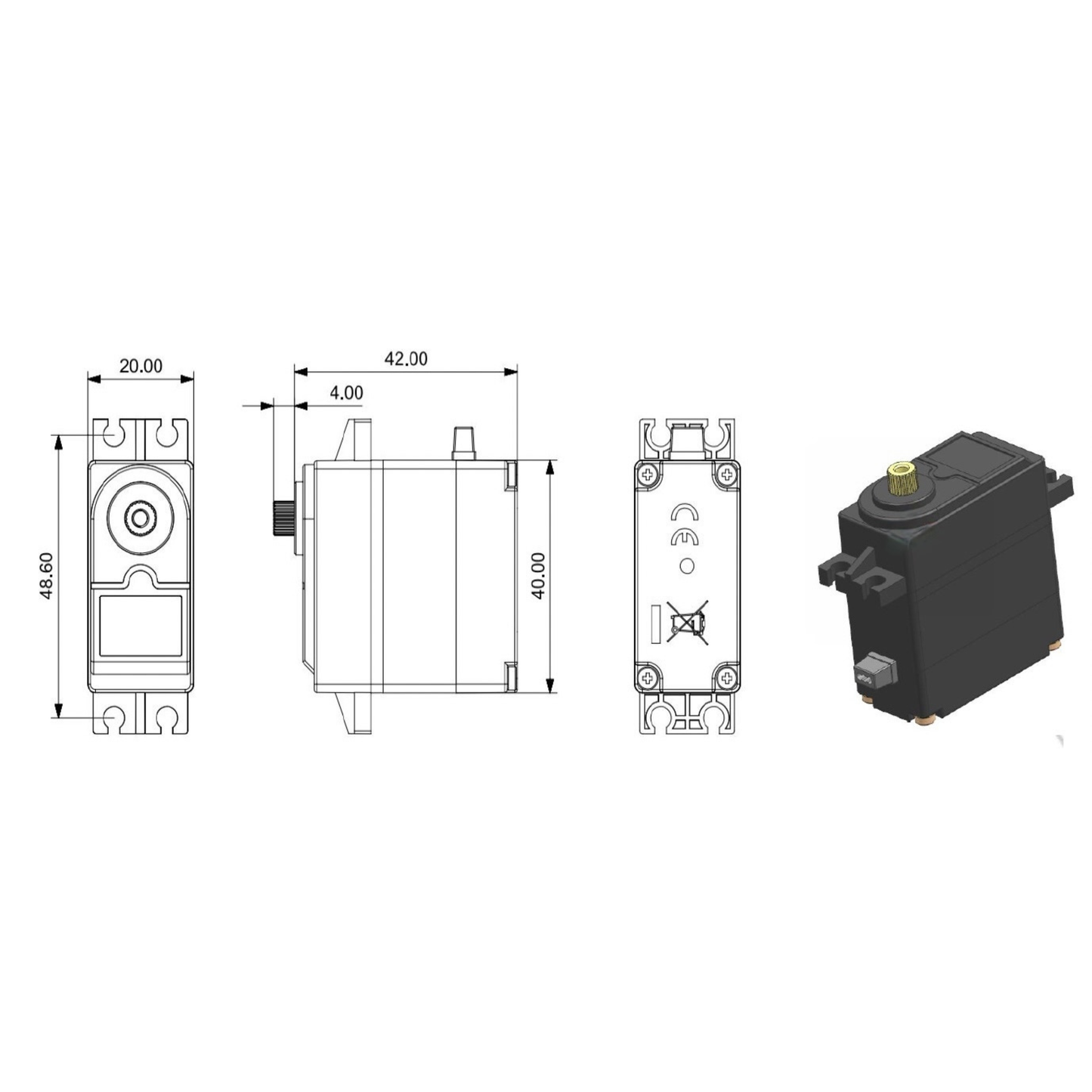

- Total size: (L/W/H): 55.0x 20.0x46.0mm
- Instalation size (L/W/H): 40.0x 20.0x42.0mm
- Hole distance: 48.6mm
