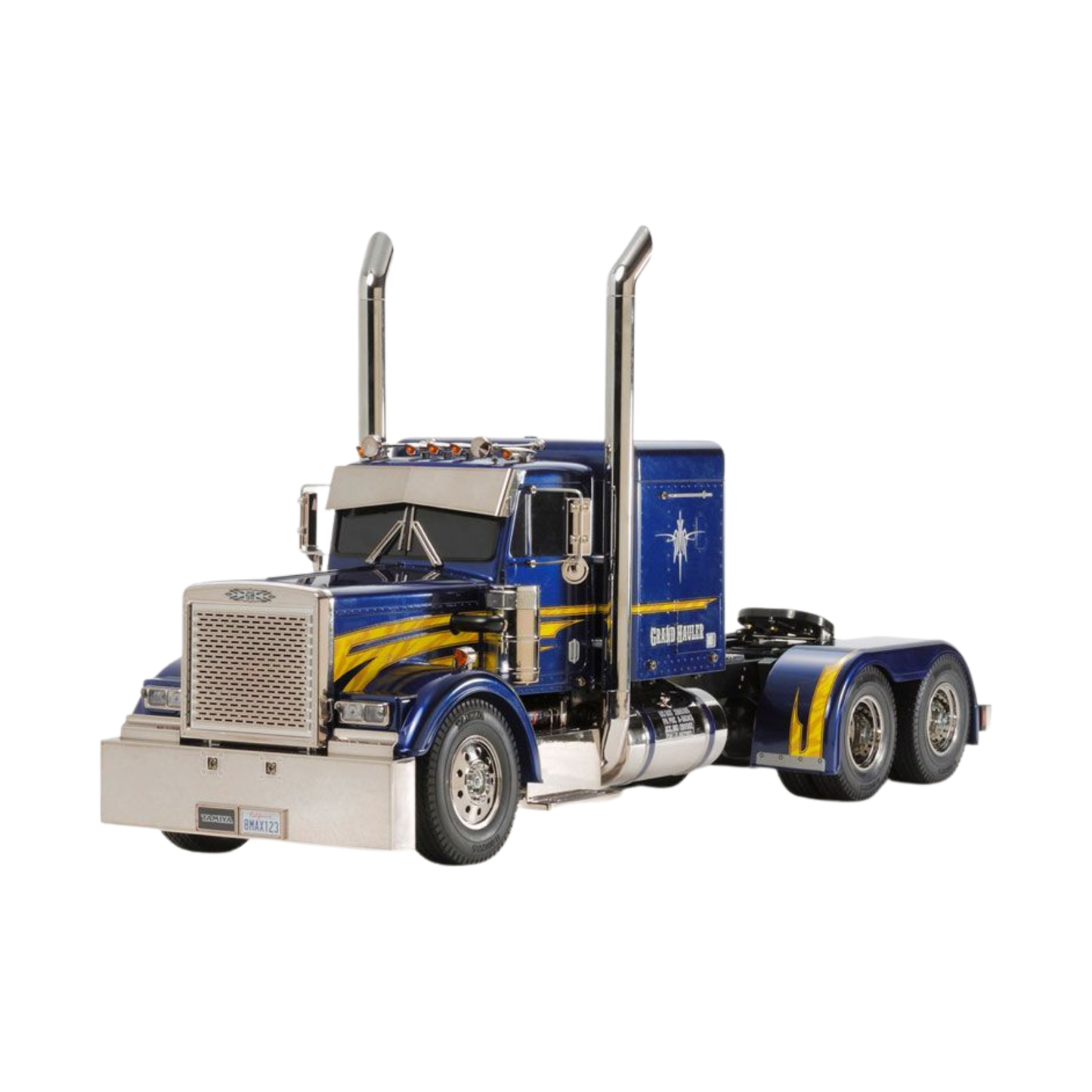

Tamiya 1/14 Grand Hauler Custom Radio Control Truck
The Grand Hauler resembles a classic customized American tractor truck. The included 540 motor drives a 3-speed transmission, which has no problem turning the dual rear axles. Leaf springs and shocks keep the axles suspended to the metal C-Channel ladder frame, which keeps the power to the pavement. With a powerful 540 motor, a 3-speed transmission, and dual rear axles, the Grand Hauler is a perfect blend of classic American design and modern engineering. Its sturdy leaf spring and shock suspension system ensures smooth and stable driving, while the C-Channel ladder frame delivers maximum power to the pavement. Experience the ultimate in custom truck control with the Tamiya 1/14 Grand Hauler.
Features:
Scale: 1/14
Construction Type: Assembly kit
Terrain Use: On-Road
Drive-train: 4-axle semi
Drive type: 3-Speed
Drive line: Dog bone
Differential type: Live axle
Suspension: Leaf spring
Steering mechanism: Bell-crank
Shock damper: Friction damper
Shock damper material: Aluminum
Tire type: Rubber
Tire tread: Radial
Body material: ABS Plastic
Chassis material: Aluminum & plastic
Electronic Speed Control (ESC): Not Included

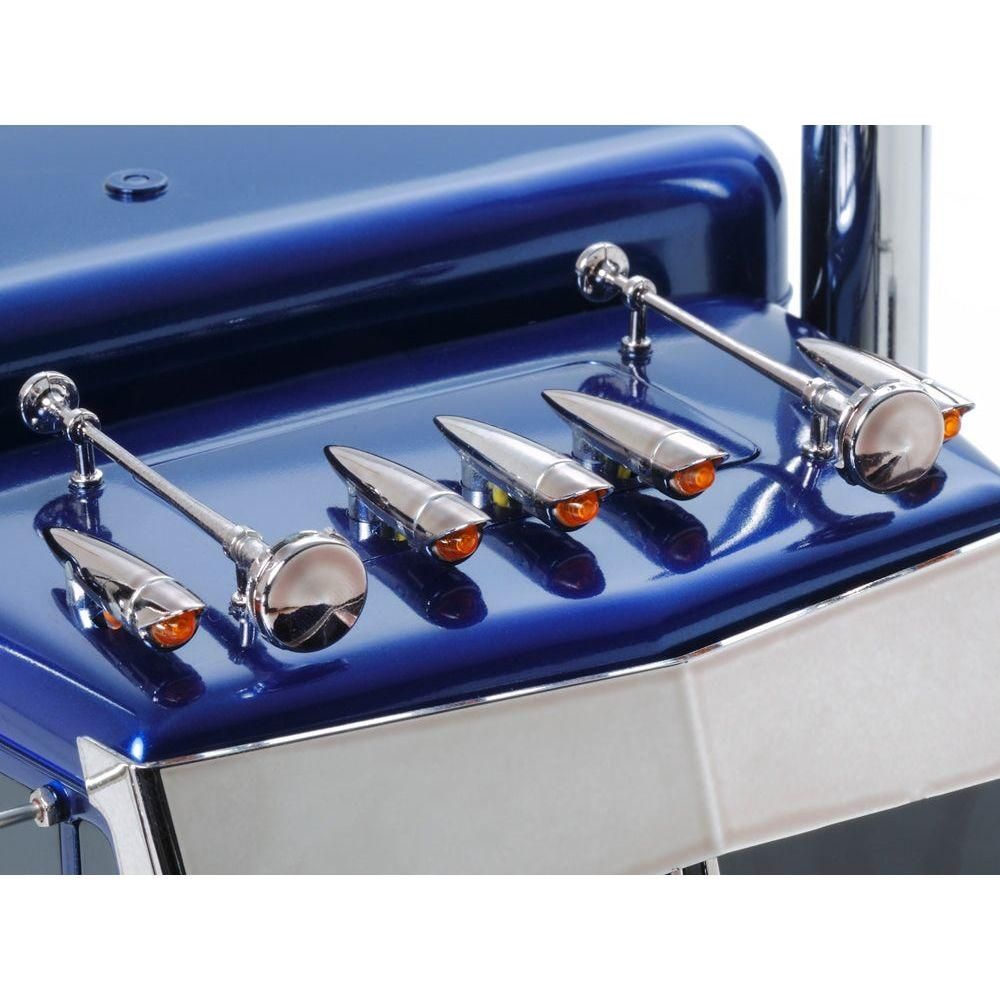

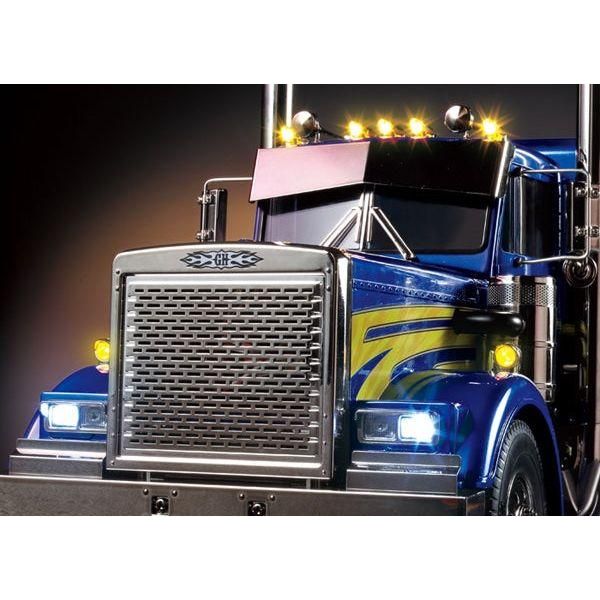

LED Light buckets: Yes
LED lights: No
Motor: 540-brushed type
Bearings: Metal Bearings
Adjustable camber: Fixed
Adjustable toe angles: Front only
Adjustable ground clearance: Fixed
Adjustable gear ratio: 3-speed transmission
Adjustable wheelbase: Fixed
Adjustable track width: Fixed
Adjustable shock angle: Fixed

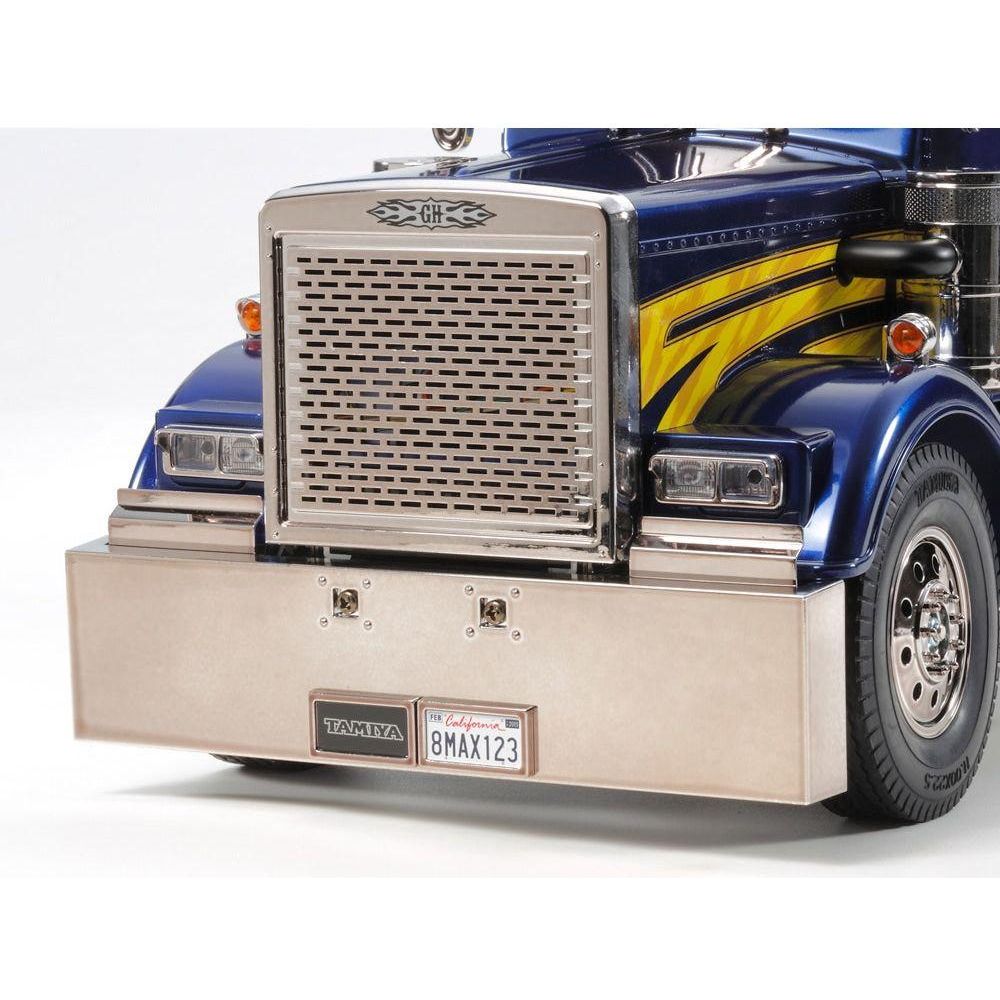

The realistic, lengthened body features newly-designed parts depicting front and rear bumpers, front grille, air cleaners and muffler covers. Muffler covers are made from metal tubing.
Features a tough ladder frame construction with aluminum side channels and plastic cross members.
Realistic drivetrain setup sees the front mounted motor powering twin rear axles.
Metal leaf spring dampers with built-in coil springs provide durable suspension.
Newly-designed 1/14 scale driver figure included.
Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer
Specifications:
Length: 692mm
Width: 190mm
Height: 300mm
Weight: 3.9kg
Wheelbase: 433mm
Tread Front and Rear: 156mm
Inclusions:
Tamiya 1/14 King Hauler Custom EP Car Kit (1 Set)
Motor: 540 type (1 Pc)
3-Speed Transmission (1 Pc)
Tires (10 Pcs)
Wheels (10 Pcs)
Body (1 Pc)
Newly-designed 1/14 scale driver figure (1 Pc)
Requires:
ESC
4-channel radio gear
Servo
7.2 battery & charger
Battery Pack
TS plastic model paint
Glue
Tools
